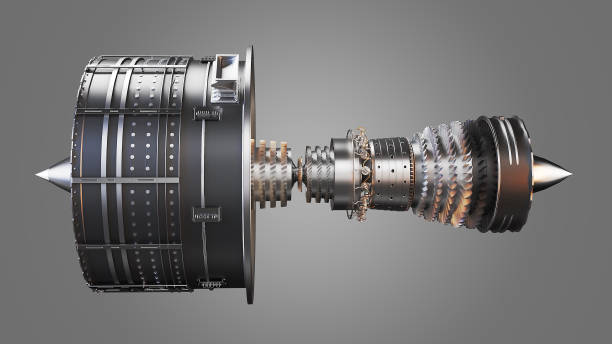

In industrial gas turbines, maintaining precise clearances between rotating and stationary components is essential for optimal performance. Even minor misalignments can result in efficiency losses, increased wear, and unplanned downtime. One of the most effective solutions for managing these clearances is the use of abradable coatings—specialized materials that protect both rotating blades and stationary components while allowing tighter tolerances.
This article explores what abradable coatings are, where and how they are applied, and how they contribute to improved turbine efficiency, reduced wear, and enhanced reliability.
What Are Abradable Coatings?
Abradable coatings are engineered materials designed to be intentionally soft relative to the mating surfaces they contact. Unlike traditional hard coatings, abradable coatings are formulated to wear away slightly when in contact with rotating components, such as turbine blades or rotors, without causing damage.
Key Characteristics
- Controlled Softness: Allows the rotating blade tips to cut into the coating slightly, preventing direct metal-to-metal contact.
- Thermal Resistance: High-temperature abradable coatings can withstand the extreme conditions of turbine hot gas paths.
- Durability: Despite being “soft,” these coatings last through multiple operating cycles without significant degradation.
In essence, abradable coatings act as a sacrificial layer, preserving the integrity of more expensive turbine components while maintaining optimal clearances for peak performance.
Where Abradable Coatings Are Applied
A wide range of turbine components can benefit from abradable coatings, primarily where rotor tips or rotating elements interact closely with stationary parts.
1. Seal Rings
Seal rings are critical in preventing leakage of high-pressure gases across the rotor and casing. Coating the inside of seal rings with abradable material allows the tips of rotating blades or shrouds to gently wear into the surface if contact occurs. This ensures that:
- Clearance remains minimal for better efficiency.
- The rotor is protected from damage due to accidental rubbing.
2. Labyrinth Seals
Labyrinth seals are intricate stationary structures with fins or teeth that interlock with the rotor but never actually touch it. They rely on precise clearances to prevent gas leakage. Abradable coatings on the teeth allow a slight, controlled wear if contact occurs, minimizing damage while maintaining optimal sealing performance.
3. Blade Shrouds
In some turbines, rotating blade tips pass very close to stationary shrouds. Abradable coatings on these shrouds:
- Reduce tip clearance without risk of blade damage.
- Minimize rubbing-induced wear and thermal damage.
- Enhance overall turbine efficiency by limiting gas leakage.
How Abradable Coatings Enable Tighter Clearances
Tighter clearances in gas turbines directly translate into improved efficiency. When rotor blade tips move closer to the casing or shrouds, less high-pressure combustion gas escapes, resulting in more energy being converted into mechanical rotation.
However, achieving tight tolerances in a high-temperature, high-speed environment is challenging due to:
- Thermal expansion of components.
- Rotor vibration and mechanical tolerances.
- Manufacturing variations in blade geometry.
Abradable coatings solve this problem by providing a forgiving surface that accommodates minor blade tip excursions. Instead of causing expensive metal-to-metal contact, the blade slightly abrades the coating, maintaining the smallest possible clearance without damage. This leads to:
- Reduced leakage losses: More gas energy is converted into mechanical work.
- Higher turbine efficiency: Even a few percent improvement in efficiency can lead to substantial fuel savings over time.
- Enhanced reliability: Components last longer due to reduced mechanical wear.
Benefits of Abradable Coatings in Gas Turbines
Implementing abradable coatings provides multiple advantages for operators seeking to maximize performance while minimizing maintenance.
1. Improved Efficiency
By reducing clearance losses between blades and stationary components, turbines operate closer to their design efficiency. This results in higher power output for the same fuel input, improving overall plant economics.
2. Reduced Component Wear
Traditional turbine operation without abradable coatings risks metal-to-metal contact, which can cause nicks, cracks, or severe blade damage. Abradable coatings act as a protective buffer, reducing mechanical wear on both rotors and stationary parts.
3. Extended Maintenance Intervals
Because abradable coatings protect critical components and accommodate minor misalignments, turbines experience less unplanned downtime. This allows operators to schedule maintenance more efficiently and extend inspection intervals without sacrificing safety or performance.
4. Increased Reliability
Turbine reliability is closely linked to consistent operation under precise tolerances. By maintaining minimal clearances without risking component damage, abradable coatings improve long-term reliability and reduce the likelihood of unexpected failures.
Installation and Maintenance Considerations
To achieve optimal results, abradable coatings must be applied correctly and maintained over the turbine’s lifecycle.
Application Methods
- Thermal Spray: Common for metallic abradable coatings, providing strong adhesion and uniform thickness.
- Plasma Spray: Offers high-temperature resistance and is suitable for hot gas path components.
- Bond Coats: Often applied beneath the abradable layer to enhance adhesion and durability.
Maintenance Tips
- Regular inspections using borescopes or endoscopes to check coating wear.
- Avoiding excessive rubbing that could indicate misalignment or other mechanical issues.
- Reapplication or touch-ups during scheduled overhauls to maintain performance.
With proper application and monitoring, abradable coatings can continue to provide benefits throughout multiple turbine lifecycles.
Conclusion
Abradable coatings are a vital technology in modern gas turbines, enabling operators to achieve tighter clearances, reduce leakage losses, and enhance overall turbine reliability. By protecting both rotating and stationary components from rubbing damage, these coatings extend component life, improve efficiency, and reduce maintenance requirements.
From seal rings and labyrinth seals to blade shrouds, the strategic application of abradable coatings allows turbines to operate closer to their design potential, unlocking both performance and economic benefits. For industrial operators seeking plant performance upgrades, integrating abradable coatings is a proven approach to achieving higher efficiency, longer equipment life, and more reliable operation.
